HP L1940 19" TFT Colour Monitor - Model # PF803AA / PF803AT

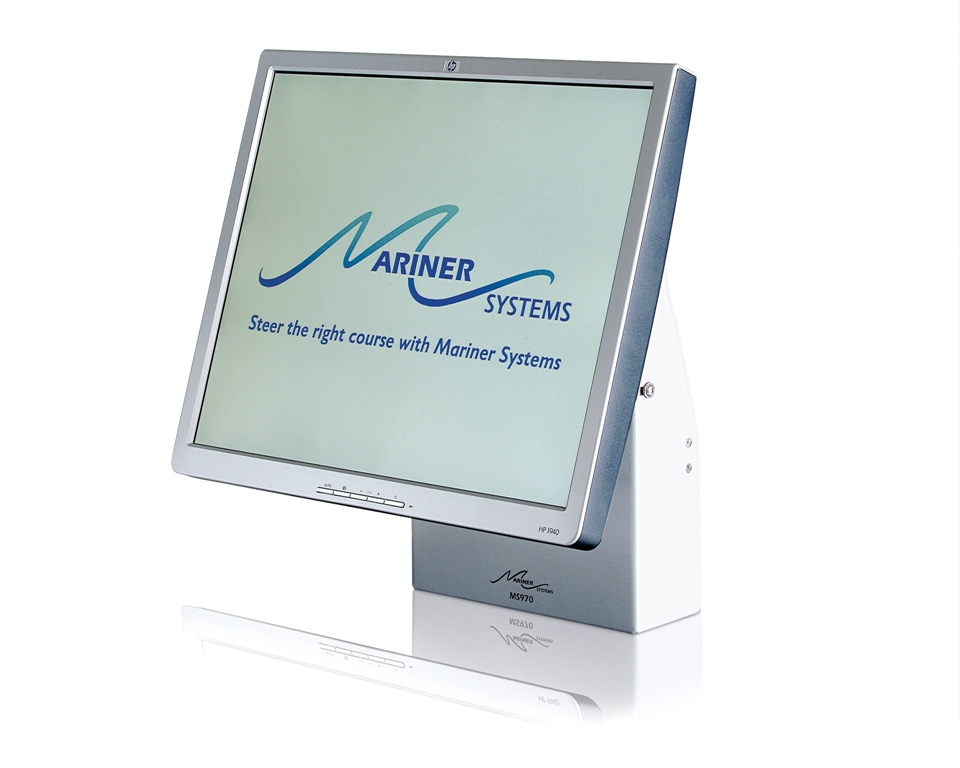

HP L1940 19-inch TFT Monitor with MS970 Mariner Kit - please click here for a larger image

The HP L1940 19" TFT colour monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS970

to a vertical surface (wall / bulkhead) with Mariner Kit MS975

into a console / rack with Mariner Kit MS1060

Both the MS970 (Desk-mount) and MS975 (Wall-mount) Mariner kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

As an option, the MS970 Mariner Kit can be installed directly on top of the MS2050 or MS2070 Mariner Kits using our optional adaption brackets (AB100 or AB200).

Please note that the although the HP TFT monitor retains its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the TFT monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

Hewlett-Packard

Manufacturer’s Part Number:

 PF803AA / PF803AT

Description

HP L1940 19" TFT Colour Monitor

Use with Mariner Kit:

MS970 (Desk-mount)

MS975 (Wall-mount)

MS1060 (Console-mount)
BACK TOP

Model No ABS BV CCS DNV GL KR LR NKK PRS RINA
PF803AA Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate

Type-approved - click here to view certificate Type-approved Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Specification

Display type

Active matrix, thin-film transistor (TFT)

Recommended resolution

1280 x 1024 @ 60 Hz analog and digital modes

Power supply

Auto-ranging 90 - 265 VAC: internal power supply

Dimensions (H x W x D)

413 x 347 x 65 mm (panel only)

Weight

5.4 kg (panel only)
Regulatory ACA, CSA, CE Marking, CCIB/CCEE, CISPR, Energy Star, FCC, TUV and GS Mark, ISO 13406-2 Compliant, NOM, MPR-II, PC2001, PC99, MIC, BSMI, TCO 99 or 03 (depending on region), TUV-Ergo, UL listed, VCCI, Microsoft Windows

Warranty

Limited three years parts, labour, and on-site service. Certain restrictions and exclusions may apply. For details, contact our local HP Customer Support.
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
