HP LP2065 20" TFT Colour Monitor - Model # EF227AA / EF227AT

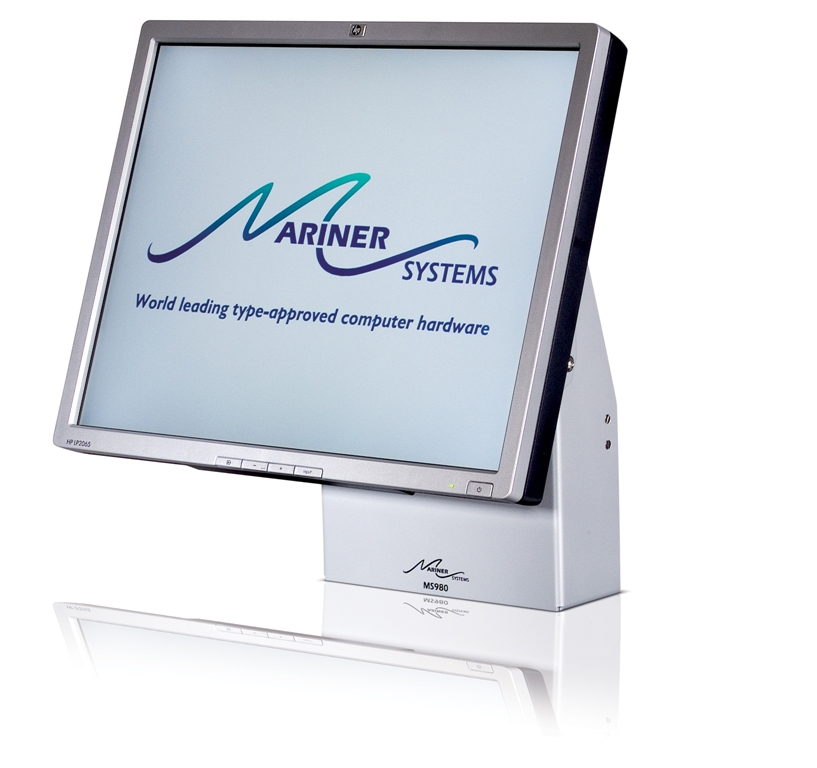

HP LP2065 20-inch TFT Monitor with MS980 Mariner Kit - please click here for a larger image

The HP LP2065 20" TFT colour monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS980

to a vertical surface (wall / bulkhead) with Mariner Kit MS985

into a console / rack with Mariner Kit MS1070

Both the MS980 (Desk-mount) and MS985 (Wall-mount) Mariner kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

As an option, the MS980 Mariner Kit can be installed directly on top of the MS2050 or MS2070 Mariner Kits using our optional adaption brackets (AB100 or AB200).

Please note that the although the HP TFT monitor retains its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the TFT monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

Hewlett-Packard

Manufacturer’s Part Number:

 EF227AA / EF227AT

Description

HP LP2065 20 " TFT Colour Monitor

Use with Mariner Kit:

MS980 (Desk-mount)

MS985 (Wall-mount)

MS1070 (Console-mount)
BACK TOP

Model No ABS BV CCS DNV GL KR LR NKK PRS RINA
EF227AT Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate

Type-approved - click here to view certificate Type-approved Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Specification

Display type

Active matrix, thin-film transistor (TFT)

Recommended resolution

1600 x 1200 @ 60 Hz analog and digital modes

Power supply

Auto-ranging 90 - 265 VAC: internal power supply

Dimensions (H x W x D)

345 x 443 x 87 mm (panel only)

Weight

5.75 kg (panel only)
Regulatory ACA (Australia), CSA (Canad), CE Marking, CCC (China), CISPR, Eastern Europe, Energy Star, FCC, TUV and GS Mark (Germany), ISO 13406-2 Compliant, NOM (Mexico), MIC (NZ), MPR-II, PC2001, PC99, MIC (S Korea), BSMI (Taiwan), TCO 03, TUV-Ergo, UL listed, VCCI, Microsoft Windows Certification

Warranty

Limited three years parts, labour, and on-site service. Certain restrictions and exclusions may apply. For details, contact our local HP Customer Support.
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
