MS2180

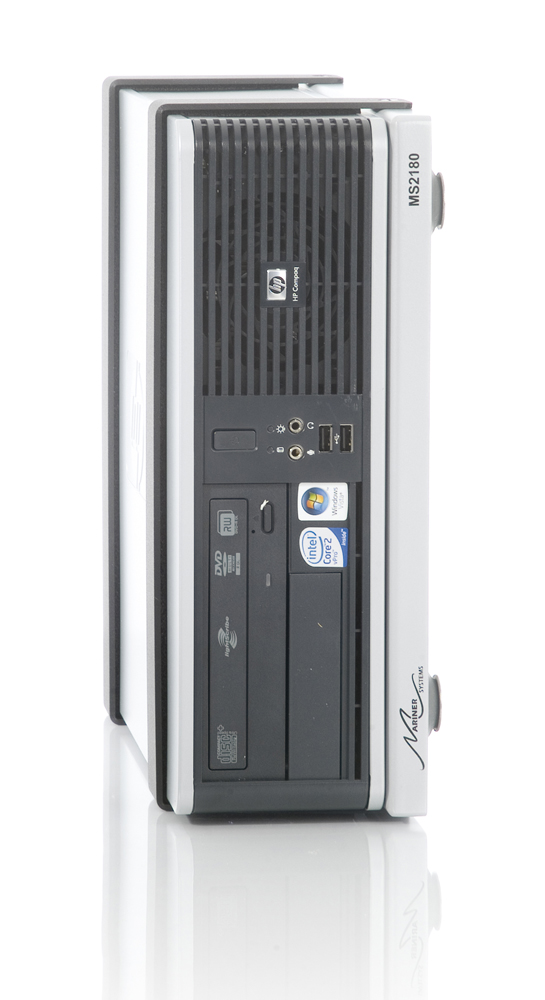

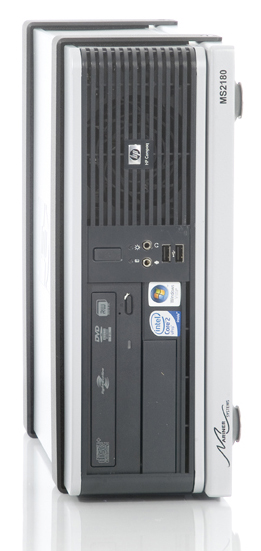

HP Compaq dc7900 SFF PC with MS2180 Mariner Kit

Use MS2180 in conjunction with

HP Compaq dc7900 Small Form Factor PC



Component Options

Processor - up to and including Intel Core 2 Quad Q9400, Core 2 Duo E8600, Pentium E5200 or Celeron 440

Hard Disk - 80, 160, 250 or 500GB 7200rpm SATA

Optical Drives - SATA DVD-ROM or SATA SuperMulti LightScribe DVD Writer

(refer to our list of approved accessories for more options)

BACK TOP

Important Note : The MS2180 Mariner Kit is supplied WITHOUT a keyboard or cable-management bracket as standard. Please select the item from the accessory list below and order it separately if required.


Accessory

Keyboard Bracket

Enables end-user to secure the HP Standard Keyboard (PS/2 or USB) supplied as standard with the HP Compaq dc7900 PC

KB100

Cable Management Bracket

Enables end-user to secure power, monitor and other cables at the rear of the PC

CM200

Console Bracket

Enables end-user to secure the entire assembly onto studs

CB100
BACK TOP


Mariner Kit

Mariner kit weight
(including packaging)

2.2 kg

Overall fitted dimensions

142mm (w) x 348mm (h)
x 390mm (d)

BACK TOP

Click here for the MS2180 product datasheet (pdf)

Click here to view a copy of the MS2180 assembly drawing (pdf)

Click here to view a copy of the MS2180 assembly drawing with CB100 (pdf)

Click here to view the PRICE LIST

Notes: In order to conform with the relevant Marine Classification Societies’ requirements the Mariner Kit MUST be used and assembled in accordance with the assembly drawing and items list included in the Customer Information pack included with each Mariner kit.

BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
