MS1070 - HP LP2065 20" TFT Console-mount kit

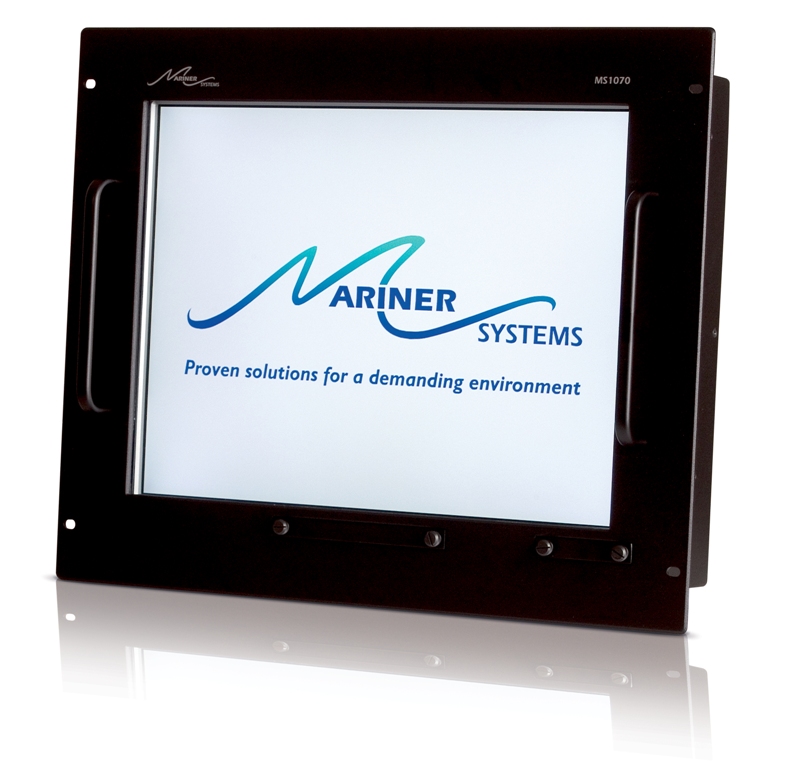

HP LP2065 20-inch TFT Monitor with MS1070 Mariner Kit - please click here for a larger image

The MS1070 Mariner kit enables you to fix the HP LP2065 20" TFT Monitor (HP part no EF227AT) into a console or rack.

The MS1070 Mariner Kit is supplied without the TFT monitor so that you can install the HP LP2065 20" TFT monitor locally. Full assembly instructions are supplied with each kit dispatched.

Alternatively, we can pre-install the HP LP2065 20" TFT monitor into the MS1070 Mariner Kit for you prior to dispatch so that you can fit this assembly into your console / rack straight out of the box. Please note that there is an installation charge for this service - contact us for more details.

Please note that the although the HP TFT monitor does retain its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the TFT monitor can be used in any area where night vision is not an issue.



Use in conjunction with

HP LP2065 20" TFT Monitor

 EF227AT
BACK TOP

Mariner Kit

Mariner kit weight (incl packaging)

9.7 Kg (excluding TFT monitor)

Overall fitted dimensions (maximum)

 540mm (w) x 440mm (h) x 164mm (d)
BACK TOP

Click here for the MS1070 product datasheet (pdf)

Click here for the MS1070 assembly drawing (pdf)

Click here for the MS1070 console cut-out drawing (pdf)

Click here to view the PRICE LIST

Notes: In order to conform with the relevant Marine Classification Societies’ requirements the Mariner Kit MUST be used and assembled in accordance with the assembly drawing and items list included in the Customer Information pack included with each Mariner kit.

BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
