MS1530 - HP EliteDisplay E233 23-inch Widescreen Monitor - Desk-mount kit

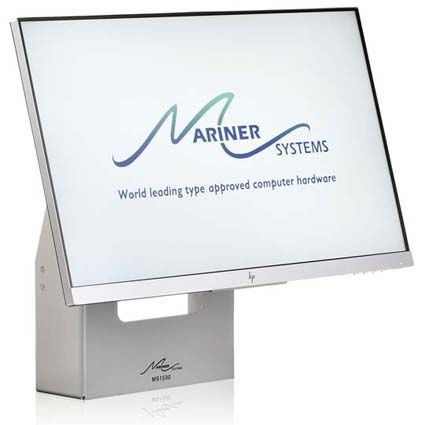

HP EliteDisplay E233 23-inch monitor with MS1530 Mariner Kit

The MS1530 Mariner kit enables customers to fix the HP EliteDisplay E233 23-inch Widescreen Monitor to a horizontal surface, eg. worksurface or console shelf.

The MS1530 Mariner kit also allows users to tilt the monitor in the vertical plane from approximately -10 to +20 degrees.

Please note that the although the HP monitor does retain its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.

As an option, the MS1530 Mariner Kit can be installed directly on top of the MS2410, MS2430, MS2450 or MS2470 Mariner Kits using our optional adaption brackets.


Use in conjunction with

HP EliteDisplay E233 23-inch Widescreen Monitor 1FH46AA 1FH46AT


Mariner Kit

Mariner kit weight (incl packaging)

1.8 Kg

Overall fitted dimensions (maximum)

522mm (w) x 430mm (h) x 230mm (d)


Click here for the MS1530 product datasheet (pdf)

Click here to view a copy of the MS1530 assembly drawing (pdf)

Click here to view the PRICE LIST

Notes: In order to conform with the relevant Marine Classification Societies’ requirements the Mariner Kit MUST be used and assembled in accordance with the assembly drawing and items list included in the Customer Information pack included with each Mariner kit.


Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at for further details.
