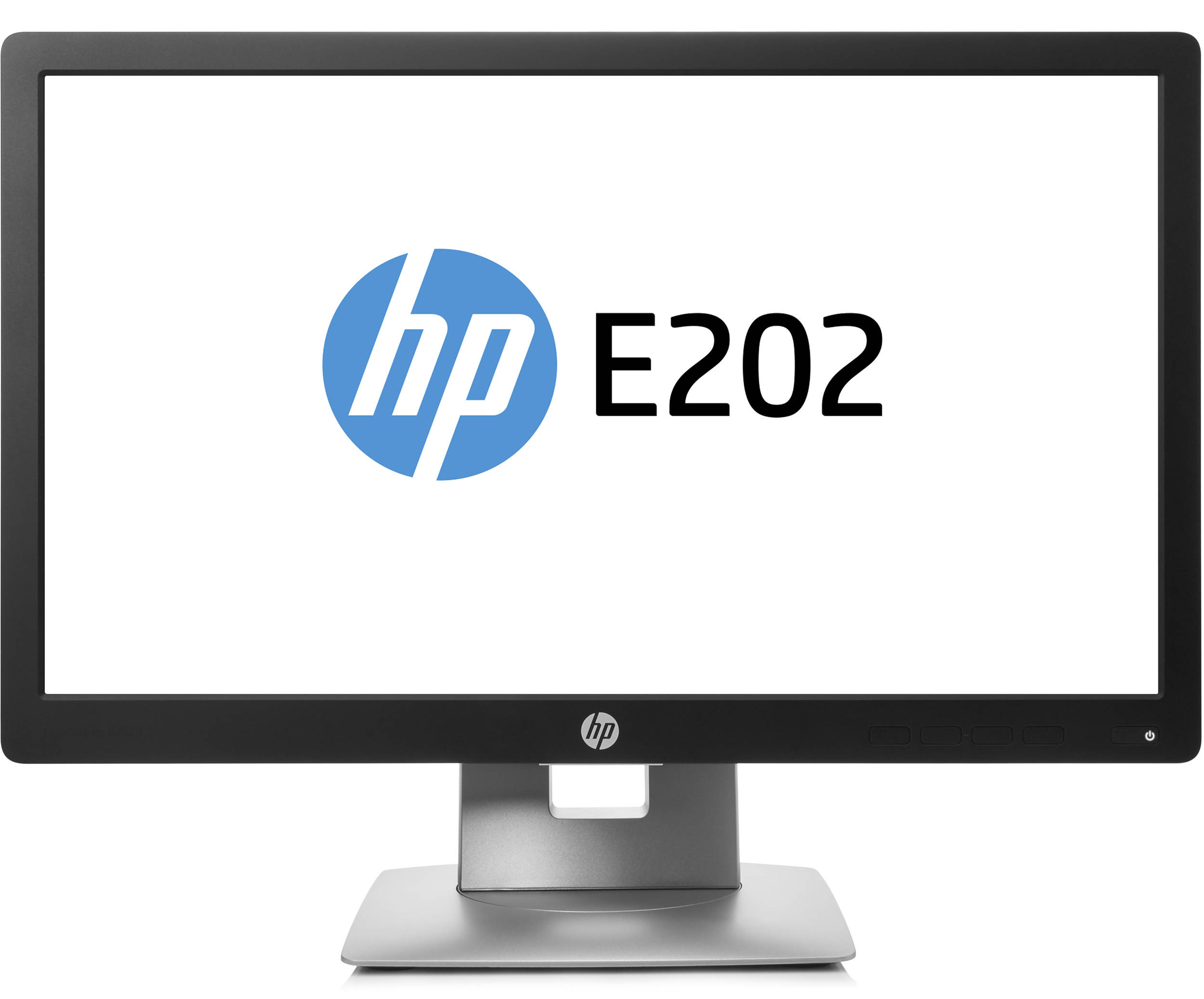

HP EliteDisplay E202 20-inch Widescreen Monitor - Model # M1F41AA / M1F41AT

HP EliteDisplay E202 20-inch Monitor (M1F41AA/T)

The HP EliteDisplay E202 20-inch Widescreen Monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS1450

to a vertical surface (wall / bulkhead) with Mariner Kit MS1455

into a console / rack with Mariner Kit MS1460

Both the MS1450 (Desk-mount) and MS1455 (Wall-mount) Mariner kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

As an option, the MS1450 Mariner Kit can be installed directly on top of the MS2410 or MS2430 Mariner Kits using our optional adaption brackets (AB800 or AB900).

Please note that the although the HP monitor retains its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

HP Inc.

Manufacturer’s Part Number:

M1F41AA / M1F41AT

Description

HP EliteDisplay E202 20-inch Widescreen Monitor

Aspect Ratio 16:9

Use with Mariner Kit:

MS1450 (Desk-mount)

MS1455 (Wall-mount)

MS1460 (Console-mount)

BACK TOP

Model No ABS BV CCS DNV-GL KR LR NKK PRS RINA
M1F41AA/T Type-approved - click here to view certificate Type-approved - click here to view certificate No application made Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate No application made No application made

Type-approved - click here to view certificate Type-approved (click for certificate) Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Specification

Display type

IPS w/LED backlight

Aspect Ratio 16:9

Recommended resolution

1600 x 900 @ 60 Hz

Imput Connectors (1) DisplayPort 1.2, (1) HDMI, (1) VGA
HDCP support on DisplayPort and HDMI

Power supply

100 - 240 VAC 50/60 Hz

Dimensions (W x D x H)

479 x 50 x 297 mm (panel only)

Weight

2.8 kg (panel only)

Regulatory TCO Certified Edge, CEL Grade 1, Microsoft WHQL Certification (Windows 10, Windows 8.1 and
Windows 7), ENERGY STAR® Qualified, EPEAT® Gold2,CE, CB, KC, KCC, NOM, PSB, ICE, TUV-S, ISO 9241-
307, EAC, UL, CSA, PSB, ISC, CCC, CEL, CECP, SEPA, ISC, VCCI, FCC, BSMI, Vietnam MEPS, Australian-
New Zealand MEPS, WEEE

Warranty

Protected by HP, including a 3 year standard limited warranty. Certain restrictions and exclusions may apply. For details, contact HP Customer Support.

BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard HP Inc. warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
