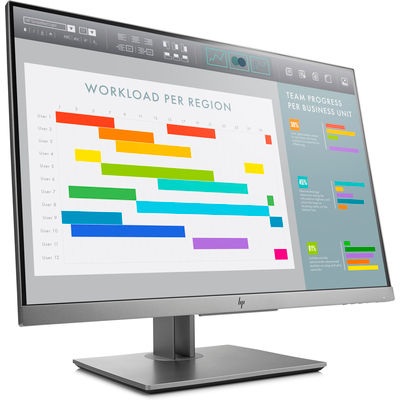

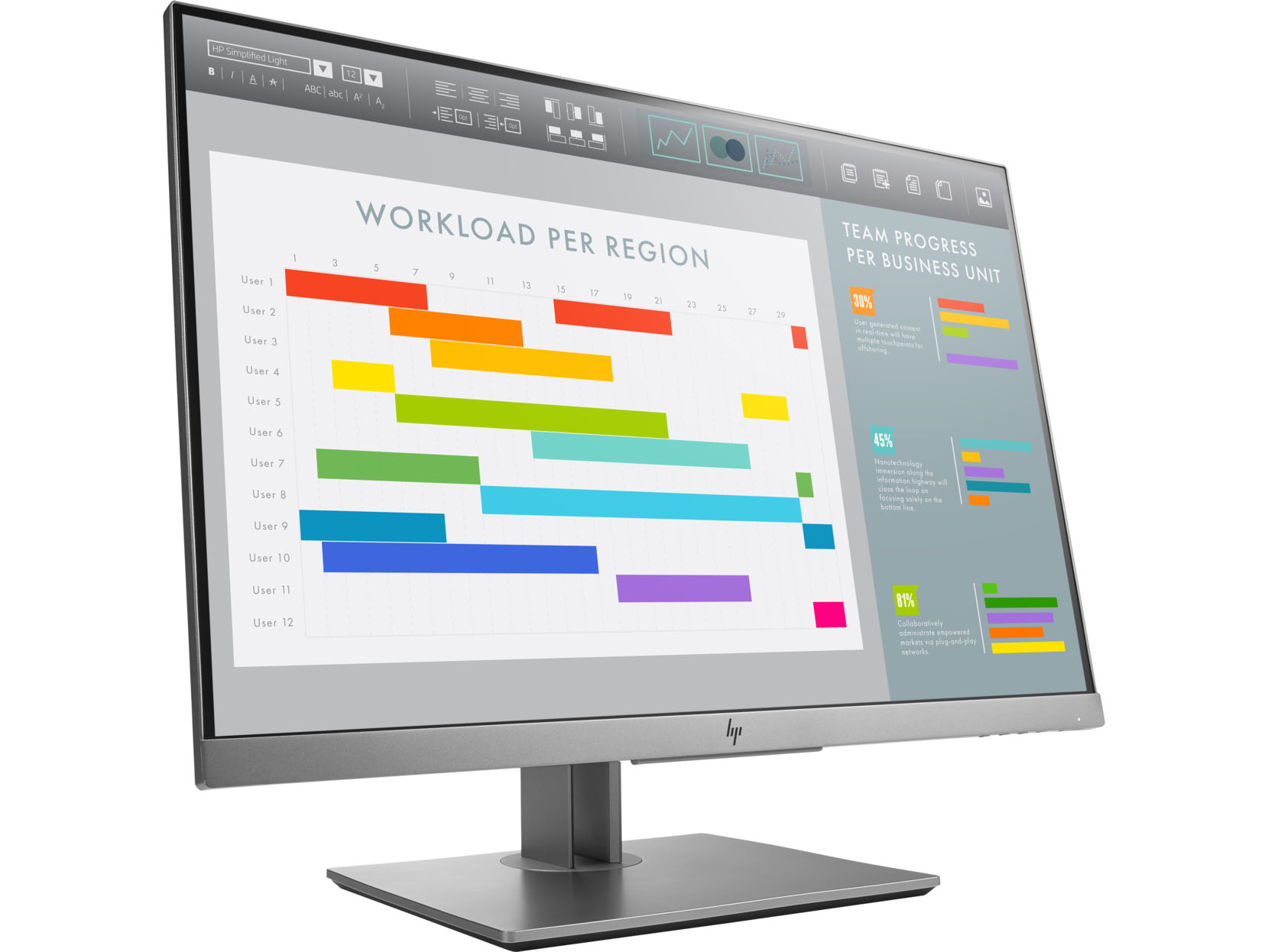

HP EliteDisplay E243i 24-inch Widescreen Monitor - Model # 1FH49AA / 1FH49AT

HP EliteDisplay E243i 24-inch Monitor (1FH49AA/T)

The HP EliteDisplay E243i 24-inch Widescreen monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS1550

to a vertical surface (wall / bulkhead) with Mariner Kit MS1555

into a console / rack with Mariner Kit MS1560

Both the MS1550 (Desk-mount) and MS1555 (Wall-mount) Mariner kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

As an option, the MS1550 Mariner Kit can be installed directly on top of the MS2410, MS2430, MS2450 or MS2470 Mariner Kits using one of our optional adaption brackets.

Please note that the although the HP monitor retains its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

Hewlett-Packard

Manufacturer’s Part Number:

1FH49AA / 1FH49AT

Description

HP EliteDisplay E243i 24-inch Widescreen Monitor

Aspect Ratio 16:10

Use with Mariner Kit:

MS1550 (Desk-mount)

MS1555 (Wall-mount)

MS1560 (Console-mount)

BACK TOP

Model No ABS BV CCS DNV-GL KR LR NKK PRS RINA
1FH49AA/T Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate

Type-approved - click here to view certificate Type-approved (click for certificate) Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Specification

Display type

IPS Micro Edge, LED Backlit

Aspect Ratio 16:10

Recommended resolution

1920 x 1200 @ 60 Hz

Imput Connectors

DisplayPort 1.2, HDMI 1.4, VGA

HDCP support on DisplayPort and HDMI

Power supply

100 - 240 VAC at 50/60Hz

Dimensions (W x D x H)

523 x 47 x 352 mm (head only)

Weight

3.7 kg (head only)

Regulatory

ENERGY STAR, EPEAT Gold, CEL Grade 2, Microsoft WHQL Certification (Windows 7,8 and 10), TCO
Certified Edge, SmartWay Transport Partnership (NA SKU), CE, CB, MSIP, Mexico COC, ICES, ISO 9241-
307, TUS-GS, cTUVus, ISC, CCC, VCCI, FCC, BSMI, WEEE, RCM, ErP, S-mark

Warranty

Protected by HP, including a 3 year standard limited warranty. Certain restrictions and exclusions may apply. For details, contact HP Customer Support.

Country of Origin China
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
