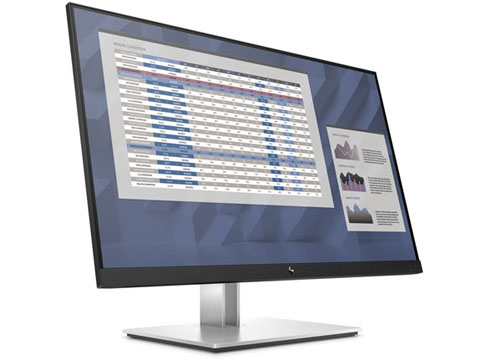

HP E27 G4 (16:9) FHD 27-inch Monitor - Model # 9VG71AA / 9VG71AT

HP E27 G4 (16:9) FHD 27-inch Monitor (9VG71AA/T)

The HP E27 G4 (16:9) FHD 27-inch Monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS1650

to a vertical surface (wall / bulkhead) with Mariner Kit MS1655

into a console / rack with Mariner Kit MS1660

Both the MS1650 (Desk-mount) and MS1655 (Wall-mount) Mariner Kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

Please note that the although the monitor retains its standard functionality, it is not fully dimmable and it cannot therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

Hewlett-Packard

Manufacturer’s Part Number:

9VG71AA / 9VG716AT

Description

HP E27 G4 FHD Monitor

Display Size (Diagonal) 27-inch
Aspect Ratio 16:9

Use with Mariner Kit:

MS1650 (Desk-mount)

MS1655 (Wall-mount)

MS1660 (Console-mount)

BACK TOP

Model No ABS BV CCS DNV KR LR NKK PRS RINA
9VG71AA/T Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate

Type-approved - click here to view certificate Type-approved (click for certificate) Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Technical Specifications

Display Panel Type

IPS

Aspect Ratio 16:9

Recommended resolution

1920 x 1080 @ 60 Hz

Brightness - Typical 250 cd/m2
Static Contrast Ratio - Typical 1000:1
Dynamic Contrast Ratio (DCR) 5,000,000:1
Connector Types

DisplayPort 1.2, HDMI 1.4, VGA, USB-A, USB-B

HDCP support on DisplayPort and HDMI

Power supply

100 - 240 VAC at 50/60Hz

Dimensions (W x D x H)

612 x 47 x 364 mm (head only)

Weight

4.3 kg (head only)

Regulatory

CE, CB, KC / KCC / NOM / PSB / ICE / TUV-S / ISO 9241-307 / EAC / UL / CSA / ISC / CCC / CEL / Energy Star / ISC / VCCI / FCC / BSMI / Vietnam MEPS / Australian-New Zealand MEPS / WEEE

ENERGY STAR 8, EPEAT Registered, CEL Grade 1, Microsoft WHQL Certification (Windows 7,8 and 10), TCO
Certified, SmartWay Transport Partnership (NA SKU)

Warranty

Protected by HP, including a 3-year standard limited warranty. Certain restrictions and exclusions may apply. For details, contact HP Customer Support.

Country of Origin China
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
