MS1570 - HP EliteDisplay E273 27-inch Widescreen LCD Desk-mount kit

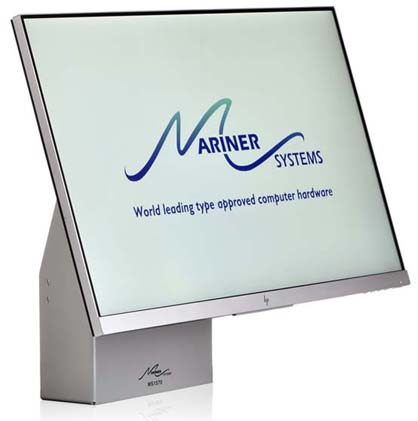

HP EliteDisplay E273 27-inch monitor with MS1570 Mariner Kit

The MS1570 Mariner kit enables customers to fix the HP EliteDisplay E273 27-inch Widescreen LED Backlit Monitor to a horizontal surface, eg. worksurface or console shelf.

The MS1570 Mariner kit also allows users to tilt the monitor in the vertical plane from approximately -10 to +20 degrees.

Please note that the although the HP TFT monitor does retain its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the TFT monitor can be used in any area where night vision is not an issue.

As an option, the MS1570 Mariner Kit can be installed directly on top of the MS2410, MS2430, MS2450 or MS2470 Mariner Kits using our optional adaption brackets.



Use in conjunction with

HP EliteDisplay E273 27-inch Widescreen LED Backlit Monitor 1FH50AA 1FH50AT
BACK TOP



Mariner Kit

Mariner kit weight (incl packaging)

1.8 Kg

Overall fitted dimensions (maximum)

611mm (w) x 455mm (h) x 240mm (d)

BACK TOP

Click here for the MS1570 product datasheet (pdf)

Click here to view a copy of the MS1570 assembly drawing (pdf)

Click here to view the PRICE LIST

Notes: In order to conform with the relevant Marine Classification Societies’ requirements the Mariner Kit MUST be used and assembled in accordance with the assembly drawing and items list included in the Customer Information pack included with each Mariner kit.

BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
